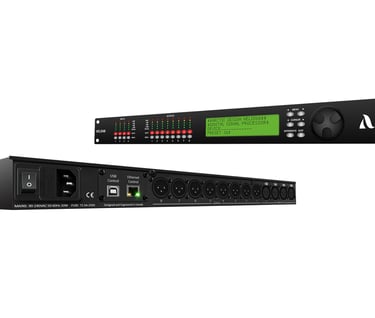

Meet, Helio DSP

Precise controls, impeccable audio

• Digital processor with 4 XLR line inputs, 8 XLR line outputs

• 96kHz sampling, high-performance 32-bit converters

• System configuration and control via Ethernet, USB or front panel

• Signal processing via intuitive software allows configuration and control for signal routing, mixing, equalization, filtering (including FIR), and delay

• Save and recall up to 30 presets

• Password protect user-selectable menus or entire device

• Stack up to 16 units via network connectivity

• Rack mountable (1U)

• Included Arctic Desk PC app

Key features

High-performance
audio processing and conversion

Easy to configure and control
with advanced precision

Store and recall up to 30 presets,
using non-volatile memory

Password protect user-selectable menus or entire device

"You can feel the build quality of the product is very strong. We copied our system settings from a previous unit to this new one. The audio clarity is just amazing. The audio sounds clean and we can be really precise with tuning the EQs. So far we've had a great experience with this DSP and we're so happy to support local!!"

"I love how simple it is to use.. and the sound quality is truly remarkable."

★★★★★

★★★★★

Rest assured, your setup is complete and saved.

In the event of a power outage, each unit is equipped with non-volatile memory, ensuring that the device preserves stored data even when the power is turned off.

Plus, you can password protect user-selectable menus or the entire device.

Technical specifications

Processor: 40-bit floating point
Sample rate: 96kHz
Analog converters: High-performance 32-bit
Propagation delay: 1.5ms, 1.75 – 7.75ms with FIR

Input impedance: >10k Ohms
Output impedance: 50 Ohms
Maximum level: +20dBu
Type: Electronically balanced

Frequency response: +/-0.1dB (20 to 30kHz)
Dynamic range: 115dB typ (unweighted)
CMMR: >60dB (50 to 10kHz)
Crosstalk: <-100dB
Distortion: 0.002% (1kHz @ +4dBu)

Gain: -40 to +15dB in 0.25dB steps
Polarity: +/-
Delay: Up to 650ms per I/O

System parameters
Number of programs: 30
Delay units: ms, ft, m
Frequency modes: 36 steps/Oct, 1Hz resolution
Security locks: Password
Channel names: 6 characters
Front panel display: Backlit LCD

Connectors
4 XLR inputs, 8 XLR outputs, USB Type-B, Ethernet standard CAT5, Power standard IEC socket
Power: 100-240 VAC (50/60Hz)
Dimensions: 19"x1.75"x9" (483x44x229mm)
Rack unit: 1U standard EIA
Weight: 10lbs/4.6kg

EQs: Variable equalizers: 8 per I/O
Type: Parametric, Hi-shelf, Lo-shelf, Phase (1st and 2nd order)
Gain: -30 to +15dB in 0.25dB steps
Bandwidth: 0.02 to 3.61 Oct (Q=0.31 to 72.13)
Graphic EQ: 1 per input, 31 band 1/3 Oct steps

IIR crossover: 2 individual filters per I/O
Type: Butterworth, Linkwitz-Riley, Bessel
Slope: 6 to 48dB per Oct

FIR crossover: 2 Individual filters per Output
Type: Multi-tap
Slope: 50 to 1200 Taps

Compressors: 1 compressor per input channel
Limiters: 1 limiter per output channel
Threshold: -20 to +20dBu
Attack: 0.3 to 100ms
Release: 2 to 32x the attack time
Ratio: 1:1 to 1:40 (compressor only)
